Description

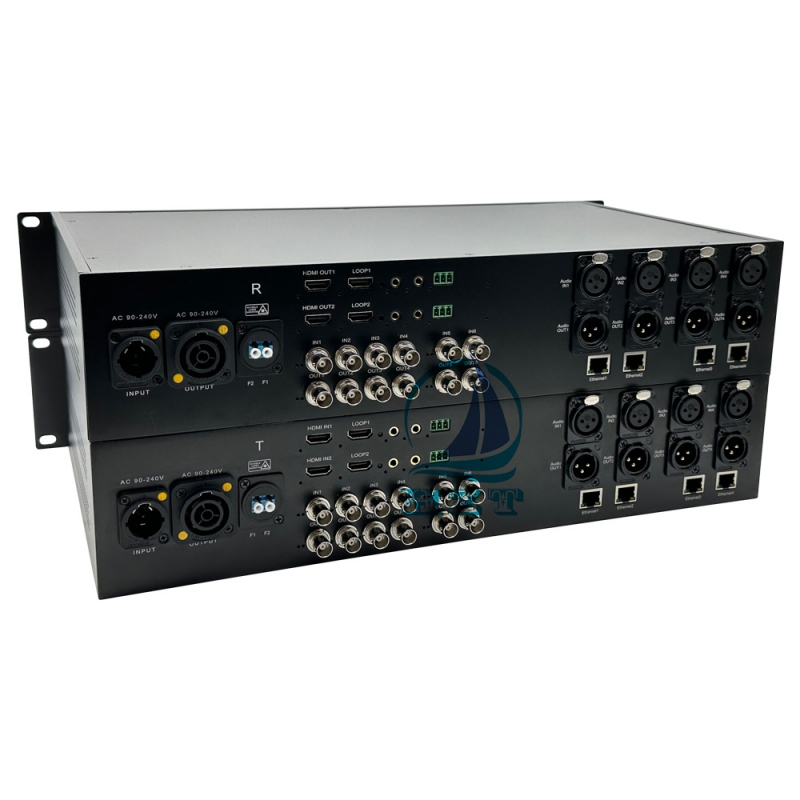

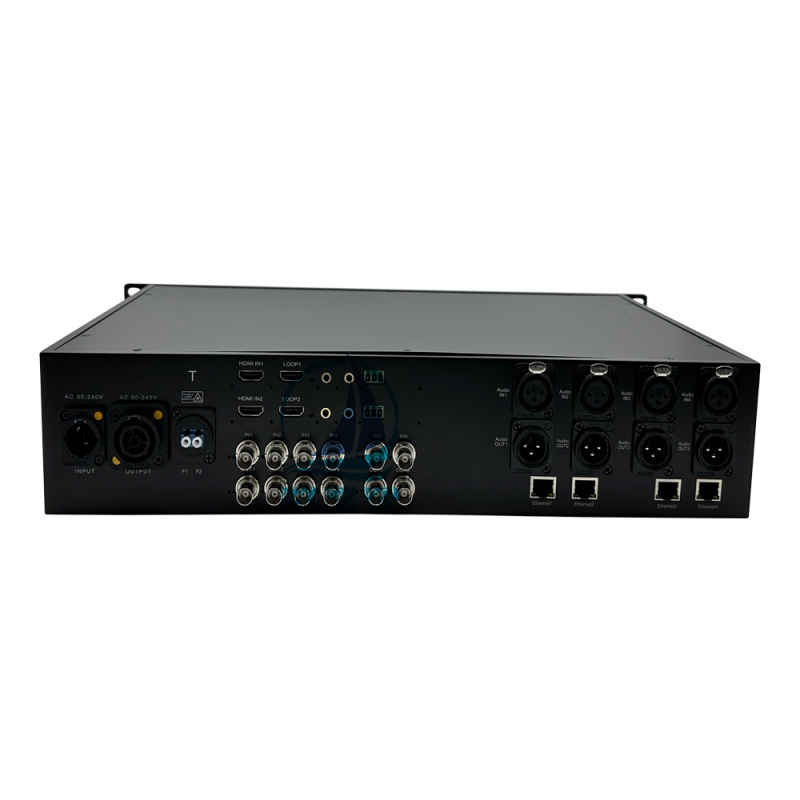

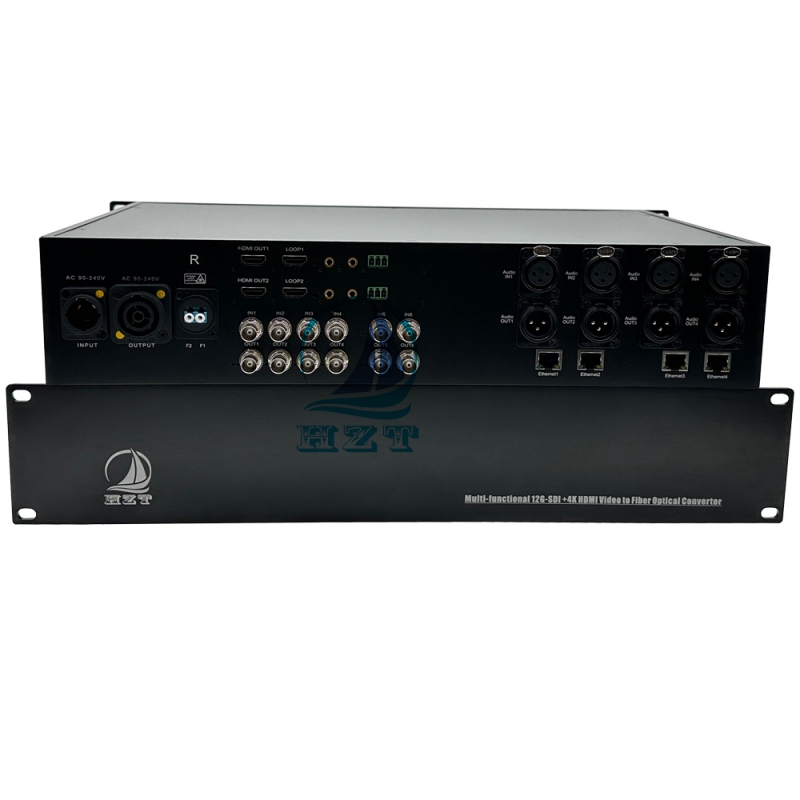

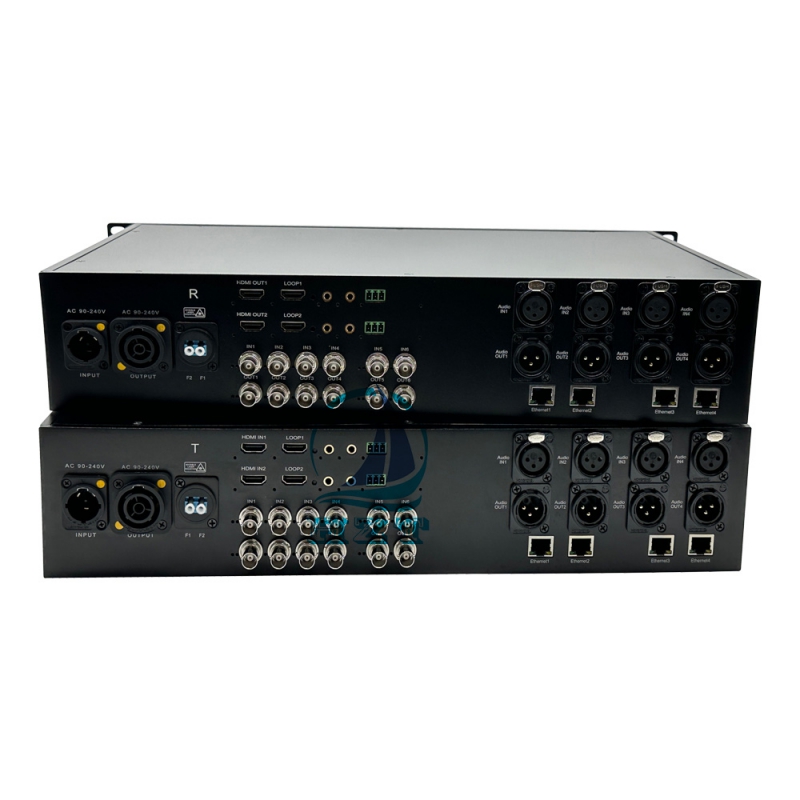

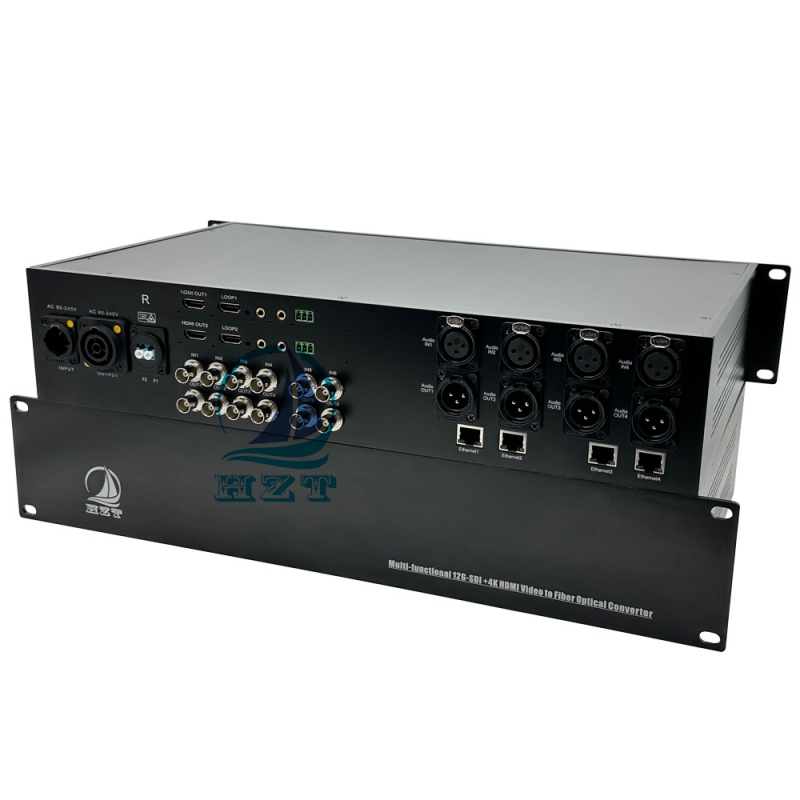

HZT-SDI-12G-6VV2H4AA4E-SM002 is designed and produced by HZT technology and which has an ideal solution for broadcasting event production applications. It can transmits 6-ch Bi-directional 12G-SDI digital video signal +2-CH 4K@60HZ HDMI high digital video+ 4-ch Bi-directional 3-pin XLR Line-level balanced Audio + 4 port 10/100/1000M Isolated Ethernet over SMPTE Fiber Converter. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.
HZT-SDI-12G-6VV2H4AA4E-SM002 also provides an additional 90-240V power output. In the studio or outdoor settings, when there are insufficient power sockets or poor power supply, this interface can directly supply power to other devices. This interface adopts the Nortek PowerCon true1 panel socket. It offers a better user experience in terms of operability and convenience.
Both transmitter and receiver of HZT-SDI-12G-6VV2H4AA4E-SM002 provide equalizing and re-clocking at input unit in order to re-construct the signal for consistent quality. Besides, with HZT technology advanced fiber technology, SDI can easily pass pathological pattern to prove its complete transmission.
Features
● 6-Channels Two-way 12G-SDI High density digital video fiber transmission
● 2-Ch 4K HDMI high digital video fiber transmission max up to 4096*2160@60hz Resolution
● 4 Channels Two-way 3-pin XLR balanced Audio fiber transmission
● 4 ports 10/100/1000M Isolated Ethernet transmission, Independent operation without interference
● Handle all Pathological patterns
● Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI, Serial Digital Video Standards
● With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
● 0~10Km on single Mode Fiber transmission
● Supports hot swapping and hot plugging
● Supports IEC and SMPTE dual power output.
Application
● Event production;
● Live on optical fiber transmission;
● TV remote studio;
● The military and public security command and control
