Features

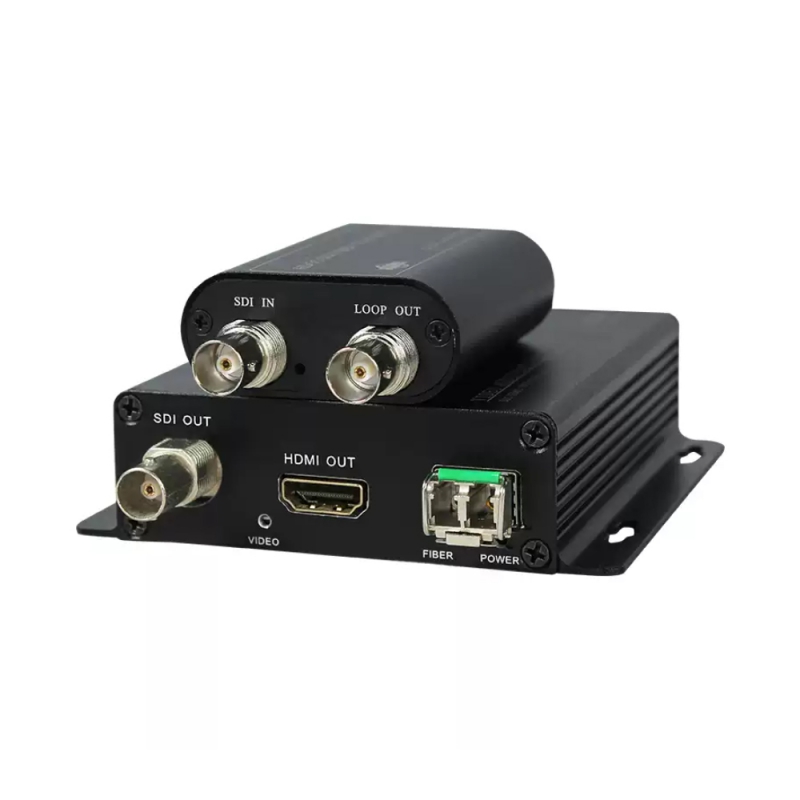

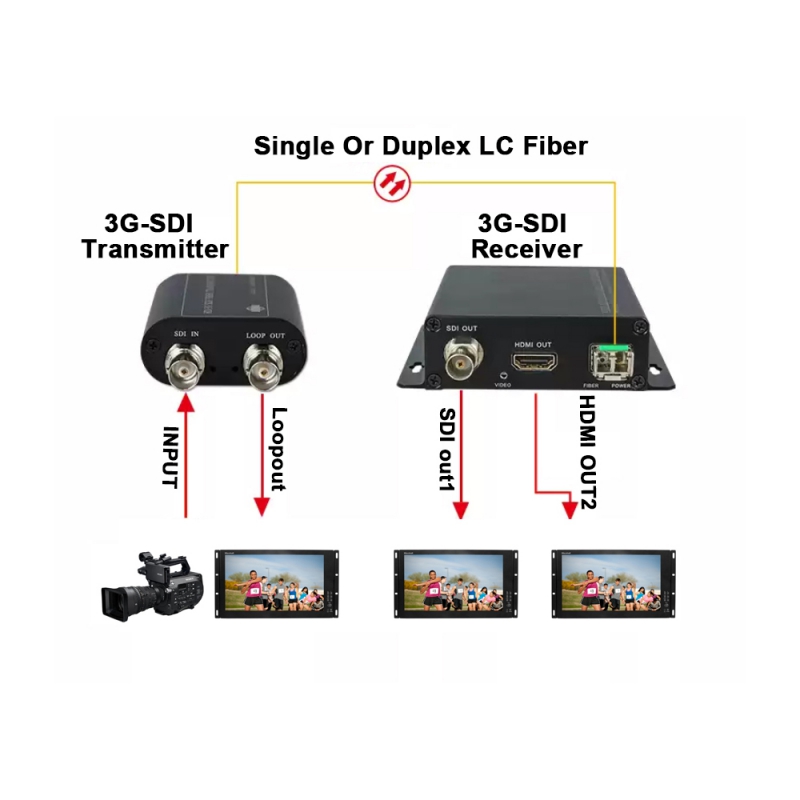

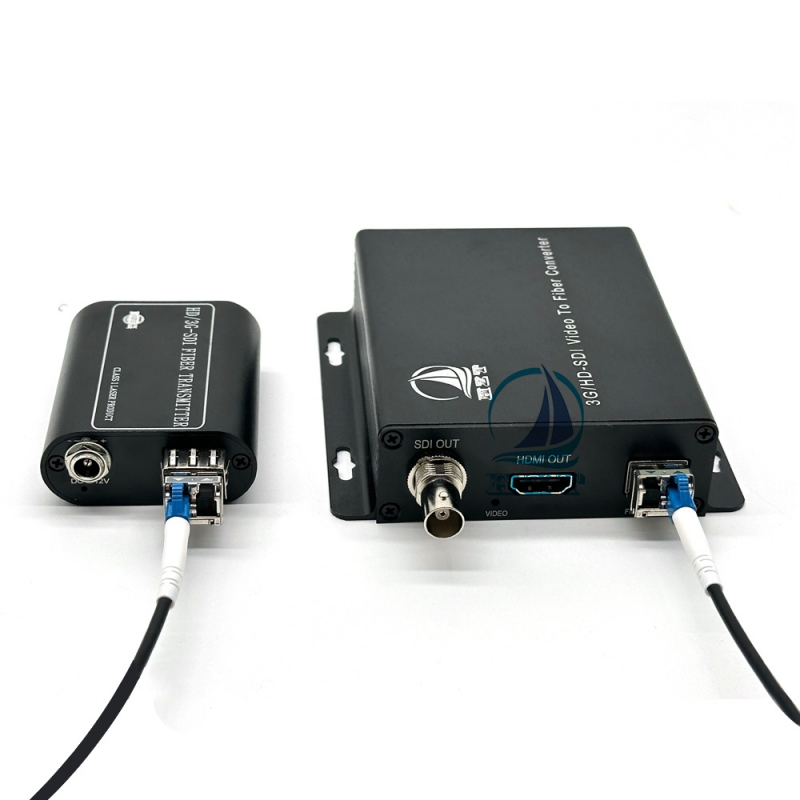

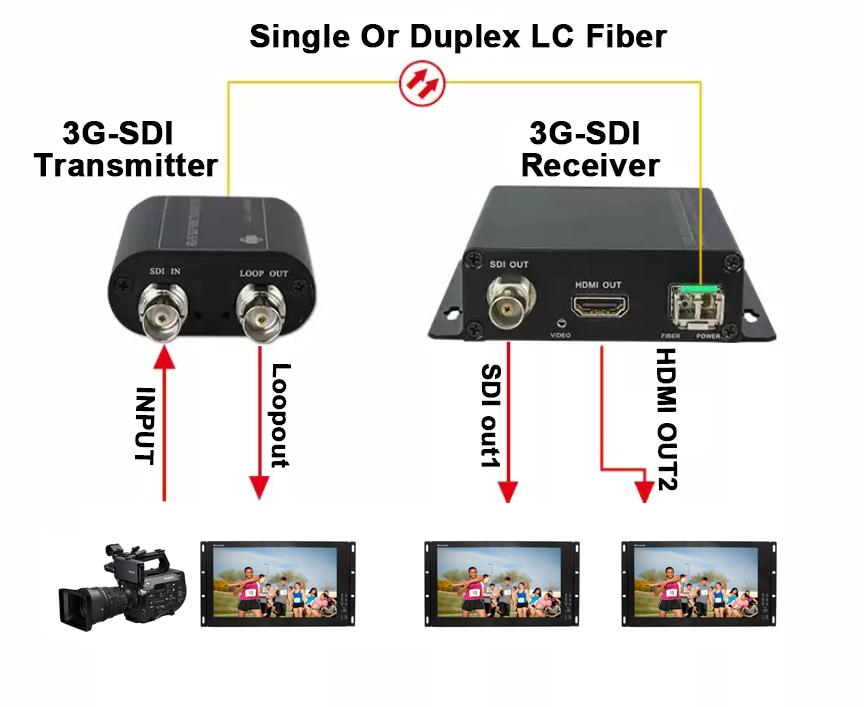

●Dual Output Flexibility: Simultaneously output 3G-SDI and HDMI signals for local monitoring or multi-display setups.
●Long-Distance Fiber Transmission: Extend 3G-SDI signals up to 10km over single-mode fiber (SMF) with zero loss.
●Broad Compatibility: Supports SD/HD/3G-SDI standards (SMPTE 259M/292M/424M) and HDMI 1.4b.
●Plug-and-Play Operation: No configuration required; automatic signal detection and conversion.
●Robust Build: Compact metal housing with rack-mount options for portable or fixed installations.
●Signal Integrity Tools: Built-in re-clocking and cable equalization for jitter-free performance.
●Simplex LC or Duplex LC single mode optical connection

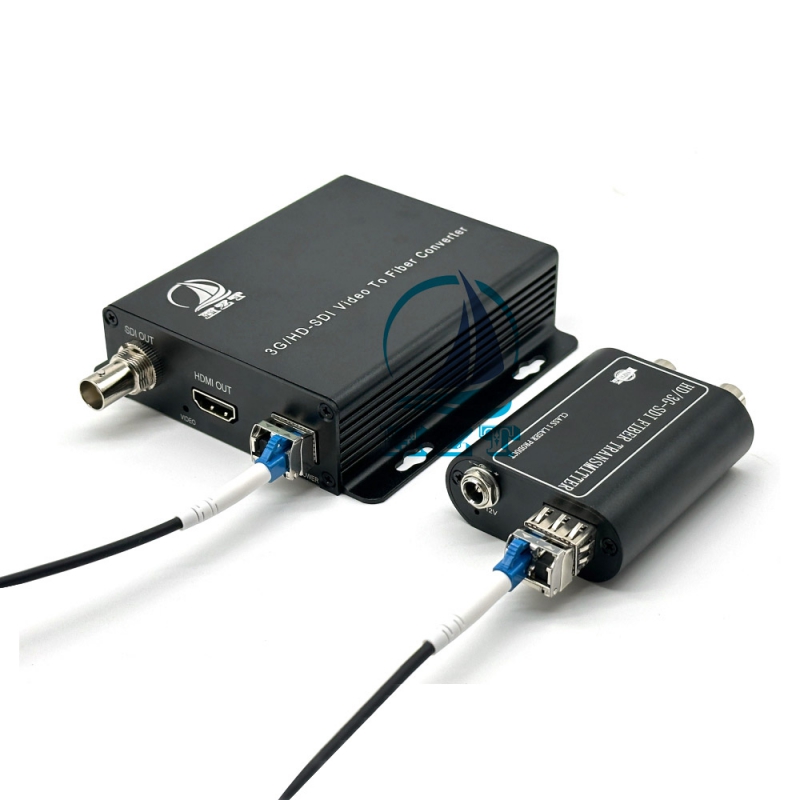

Connection:
|
Fiber Optical
|
|
|
Wavelength:
|
Standard 1310nm(1550nm optional,CWDM Optional)
|
|
Output Power:
|
-9~-3dBm（0±3dBm optional）
|
|
Optical fiber:
|
Singlemode Fiber
|
|
Rx sensitivity:
|
-18dBm~0 dBm
|
|
Optical connector:
|
Simplex LC or Duplex LC optional
|
|
Distance:
|
0~10KM (SM Default)
|
|
3G/HD-SDI Video
|
|
|
Support :
|
SDI level A and Level B
|
|
SDI Signal Standard:
|
SMPTE 424M, SMPTE 292M, SMPTE 259M
|
|
Data Rates:
|
270Mbit/s - 1.48Gbit/s - 3Gbit/s
|
|
Cable Equalization:
|
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s,
140m @ 1.5Gbit/s,
80m @ 3Gbit/s
|
|

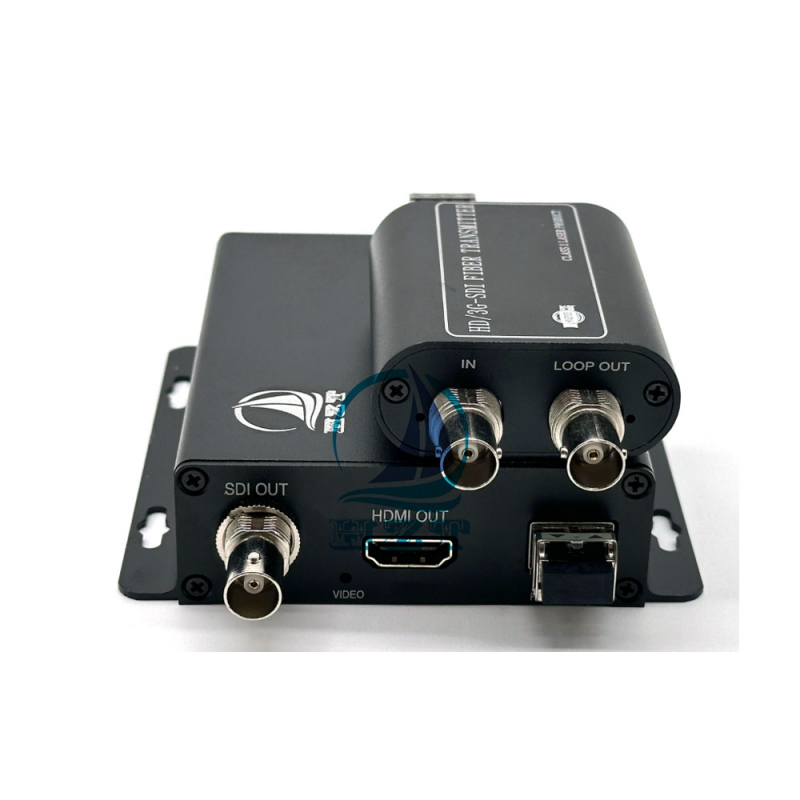

Connector:
|
BNC 75 Ohm
|
|

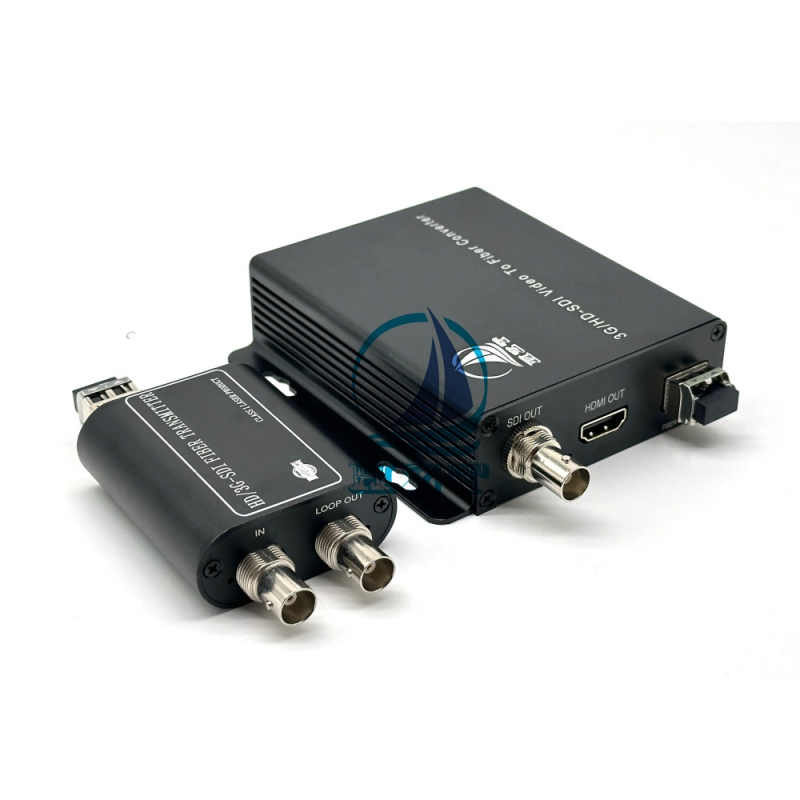

Number of Transmitter Channel:
|
1-ch 3G-SDI Video Input +1-ch 3G-SDI Video Loopout
|
|
Number of Receiver Channel:
|
1-ch 3G-SDI Video output + 1-ch HDMI Output
|
|
HDMI Output
|
|
|
HDMI Version:
|
HDMI 1.3
|
|
HDMI Resolution:
|
1080p/1080i/720p/720i/576p/576i/480p/480i
|
|
Connector:
|
1HDMI, type A, female
|
|
Output Cable Length:
|
≤20m AWG26 HDMI 1.3 standard cable
|
|
Number of HDMI output:
|
1-ch HDMI Output
|
|
General index |
|
|

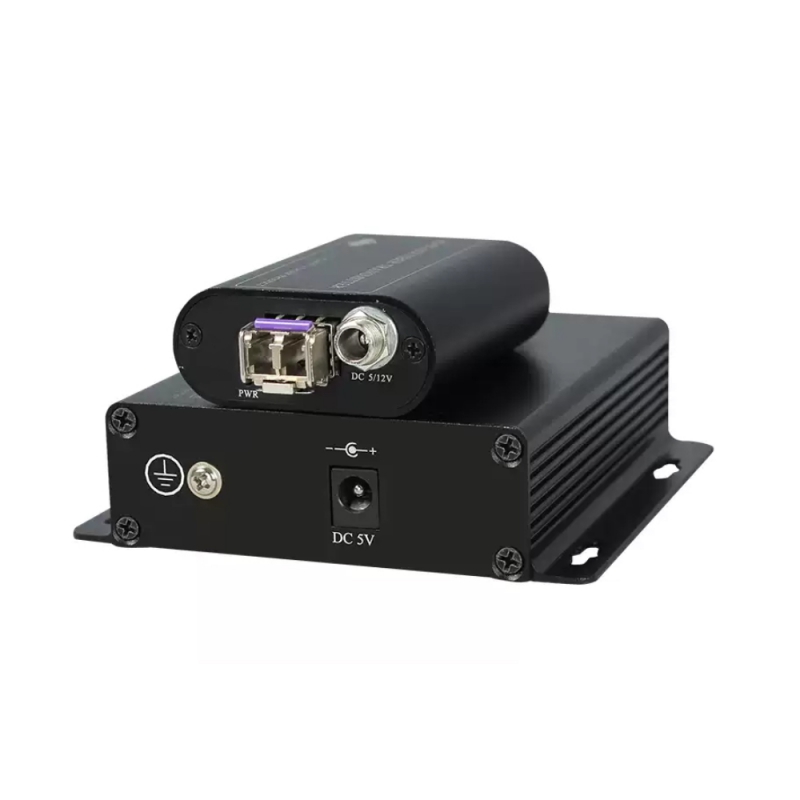

Power supply:
|
DC5V or 12V
|
|
Power consumption
|
<5 w
|
|
Net weight:
|
0.5 KG /pair
|
|
Dimension :
|
Tx: 62*52*22mm, Rx:104*104*28mm
|
|
Case Material:
|
Aluminum Alloy
|
|
Work Temp:
|
-20°C to 55°C
|
|
Storage Temp:
|
-20°C to 70 °C
|
|
humidity:
|
0 ~ 95% (non-condensing)
|
 |
