Description

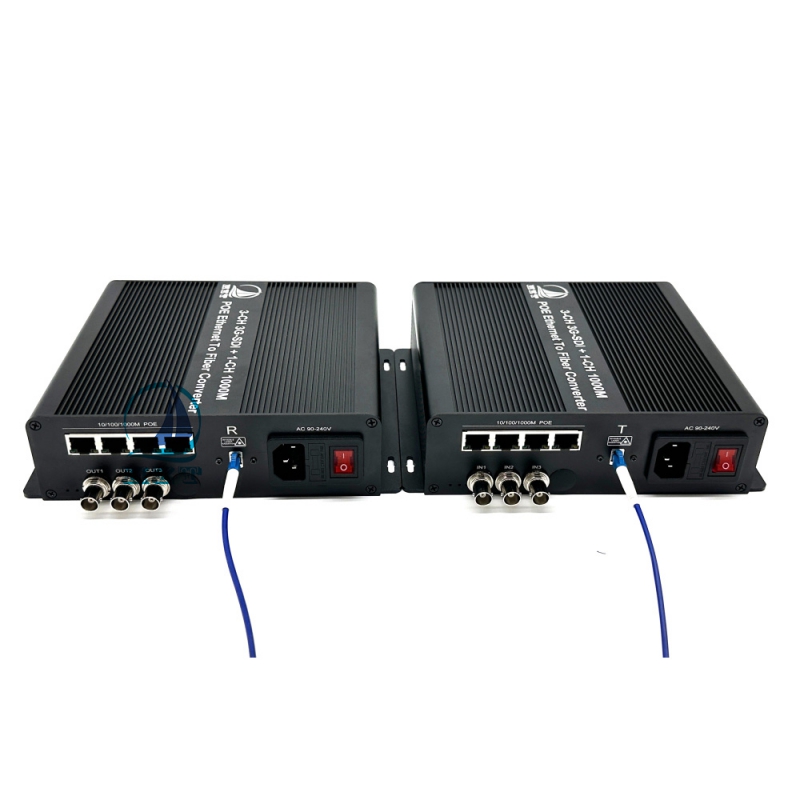

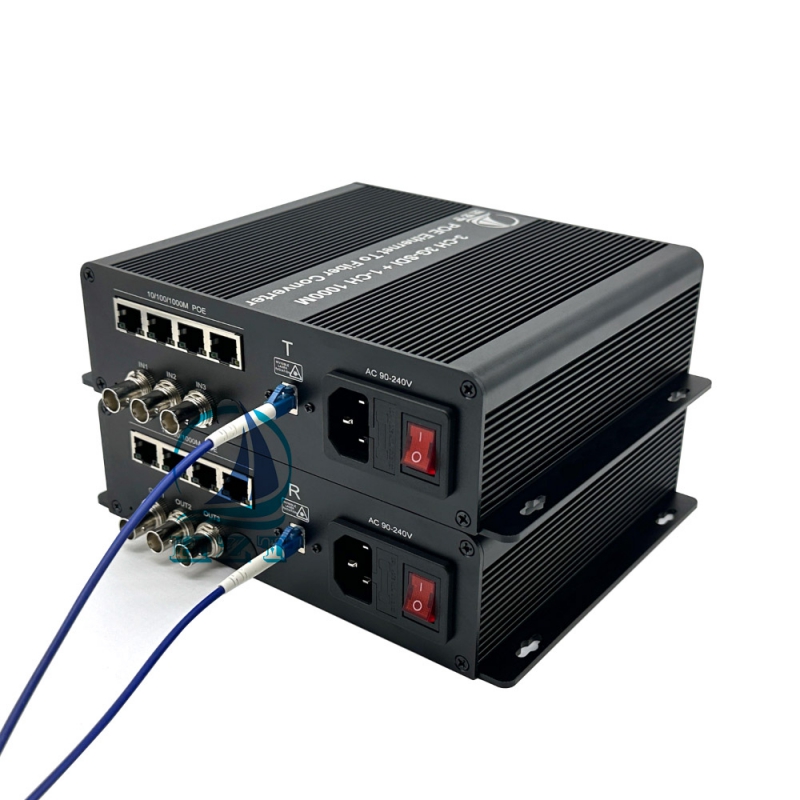

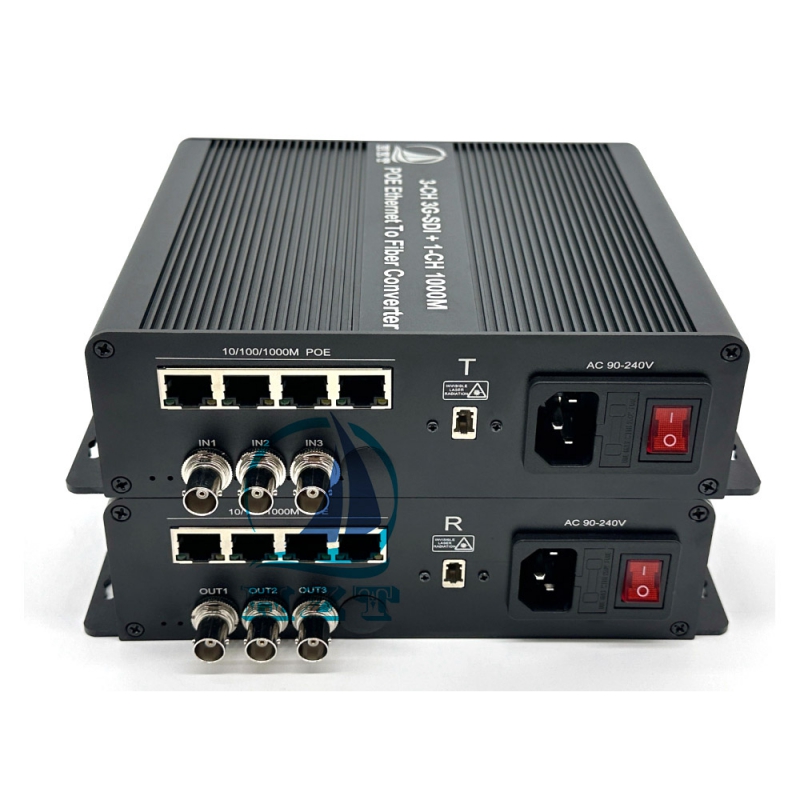

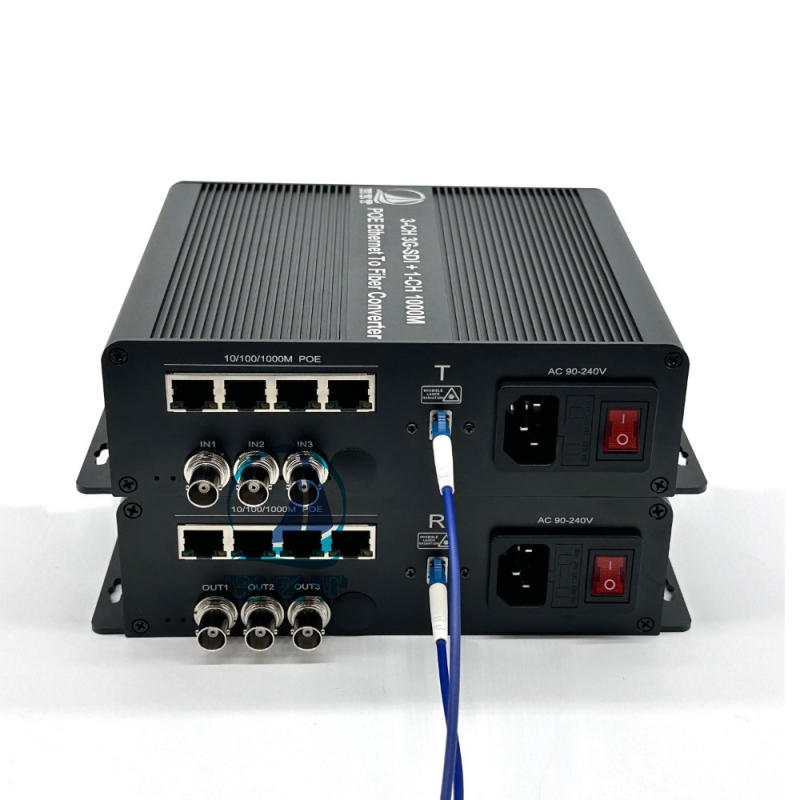

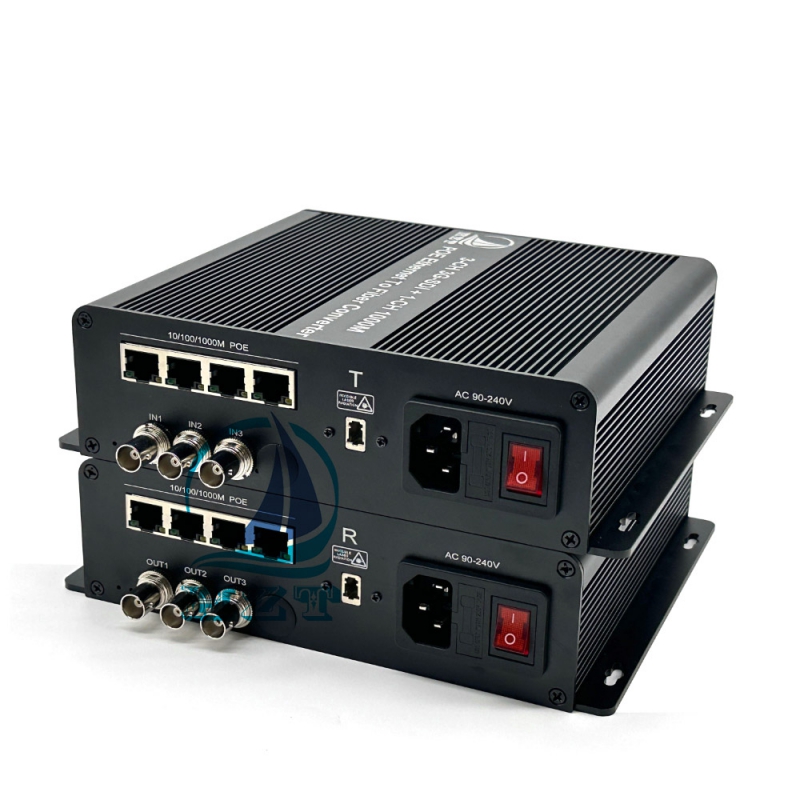

HZT-SDI-3G-3V4SP-SM001 The 3-CH 3G/HD-SDI + 10/100/1000M PoE Ethernet to Fiber Converter is a high-performance media transmission device designed for professional video surveillance and broadcast applications. It seamlessly transmits three channels of 3G/HD-SDI video signals along with PoE-powered Ethernet data over a single fiber optic cable, ensuring long-distance, high-bandwidth, and interference-free signal transmission.
Key Features
● Triple-Channel SDI Support: Transmits 3 independent channels of 3G-SDI/HD-SDI video signals (up to 1080p@60Hz) with zero latency.
● Handle all Pathological patterns
● SD, HD, 3G, 12G input auto indentification，support 270Mbit/s - 11.88Gbit/s datarate
● High Compatibility:Supports SMPTE 424M/292M/259M standards for seamless integration with SDI cameras, DVRs, and broadcast equipment.
● Bidirectional support POE
● Compatible with 10/100/1000M Ethernet
● Gigabit PoE Ethernet Integration: 4-port shared 1000M network bandwidth, Built-in 10/100/1000Mbps PoE (Power over Ethernet) port to support IP cameras or other PoE devices, eliminating the need for separate power wiring.
● Fiber Optic Transmission: 10KM on single Mode Fiber transmission
● Plug-and-Play Operation: No software configuration required; hot-swappable SFP slots for flexible fiber connectivity (single/dual mode).
Applications
●Surveillance Systems: Extend HD-SDI camera feeds + PoE IP cameras over fiber in airports, traffic monitoring, and city security networks.
●Broadcast & Live Production: Reliable multi-channel video transport for studios, OB vans, and event broadcasting.
I●ndustrial & Transportation: Noise-immune video transmission in harsh environments (e.g., tunnels, railways).
Technical Specifications
●Video Input/Output: 3× 3G/HD-SDI (BNC connectors, 75Ω impedance).
●Ethernet: 1× 10/100/1000BASE-T PoE port (IEEE 802.3af/at compliant).
●Fiber Interface: 1~2 SFP slots (dual-fiber or CWDM/DWDM optional).
●Max. Distance: Up to 60km (with single-mode fiber).
●Power Supply: AC 90~240V or PoE-powered (varies by model).
Why Choose This Converter?
✔ Cost-Effective – Combines SDI + Ethernet + PoE in one fiber link.
✔ Future-Proof – Supports 3G-SDI for ultra-HD video readiness.
✔ Reliable – No data loss or EMI/RFI interference over fiber.
Ideal for integrators seeking a streamlined solution for hybrid video+data fiber networks.
