Category
|
Specification
|
|
Product Description:
|

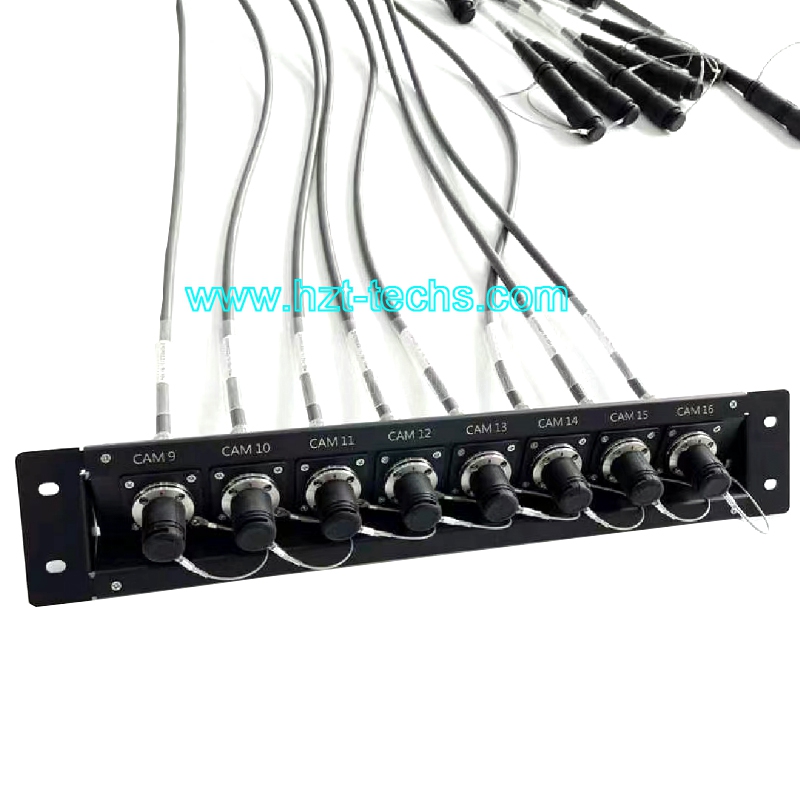

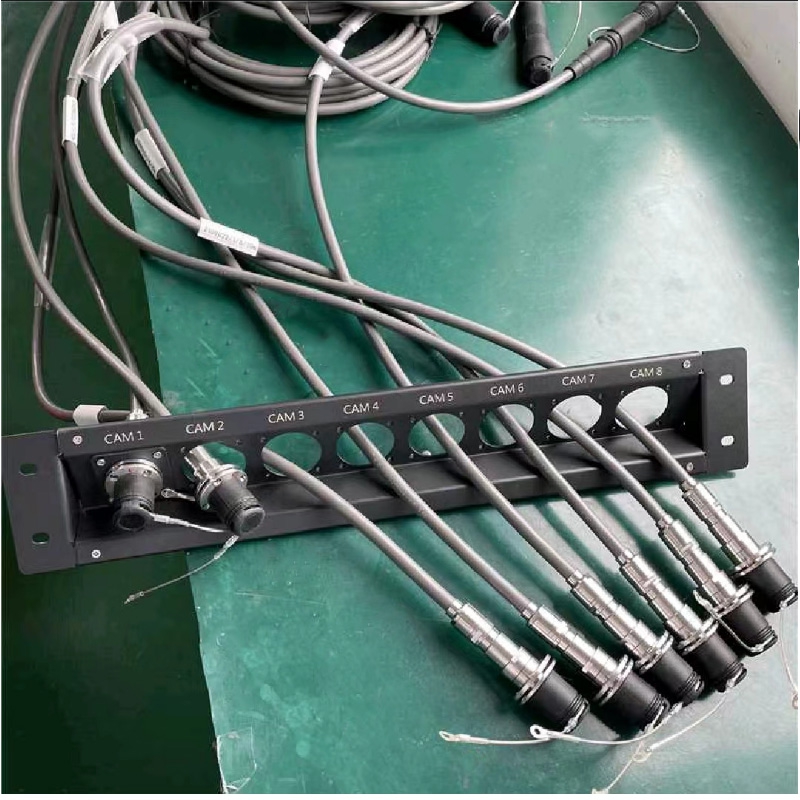

19″ SMPTE Rack Mount Panel With FMW-PUW hybrid Cable assembly
|
|
Mechanical Specifications
|
|
|
Rack Standard:
|
EIA 19-inch, standard rack width (483mm)
|
|
Panel Height:
|
1 RU (1 Rack Unit, 44.45 mm / 1.75 inches)
|
|
Material:
|
Steel or Aluminum chassis; metal or composite adapter panel.
|
|
Finish:
|
Black, anodized or powder-coated.
|
|
Capacity:
|
Max: 8 × SMPTE 311M PUW-FMW Cable
|
|
Cable Specifications
|
|
|
Fiber Type:
|
Single-Mode (OS2)
|
|
Connector:
|
FMW-PUW
|
|
Cable length: |
0.5 meter to 20 meter (Or custom lengths available) |
|
Power Wire specification:
|
2x1.0mm²
|
|
Signal wire specification:
|
2 x signal wires
|
|
Outer Jacket:
|
PVC (Default) or TPU(customized)
|
|
Outer Diameter:
|
9.2±0.2 mm
|
|
Minimum Bend Radius:
|
6 x Cable Outer Diameter
|
|
Tensile Load (Max.):
|
700N
|
|
Environmental & Reliability
|
|
|
Operating Temperature:
|
-10°C to +70°C (+14°F to +158°F).
|
|
Storage Temperature:
|
-40°C to +85°C (-40°F to +185°F).
|
|
Durability:
|
SMPTE Connector: >500 mating cycles.
|
|
Flammability Rating:
|
UL 94V-0 (for panel materials).
|
|
Compliance & Standards
|
|
|
Standards:
|
Compliant with SMPTE 304M, IEC 61754-20 (LC), and Telcordia GR-326-CORE.
|
|
RoHS:
|
Compliant with RoHS directives.
|
 |
