Product Description
|

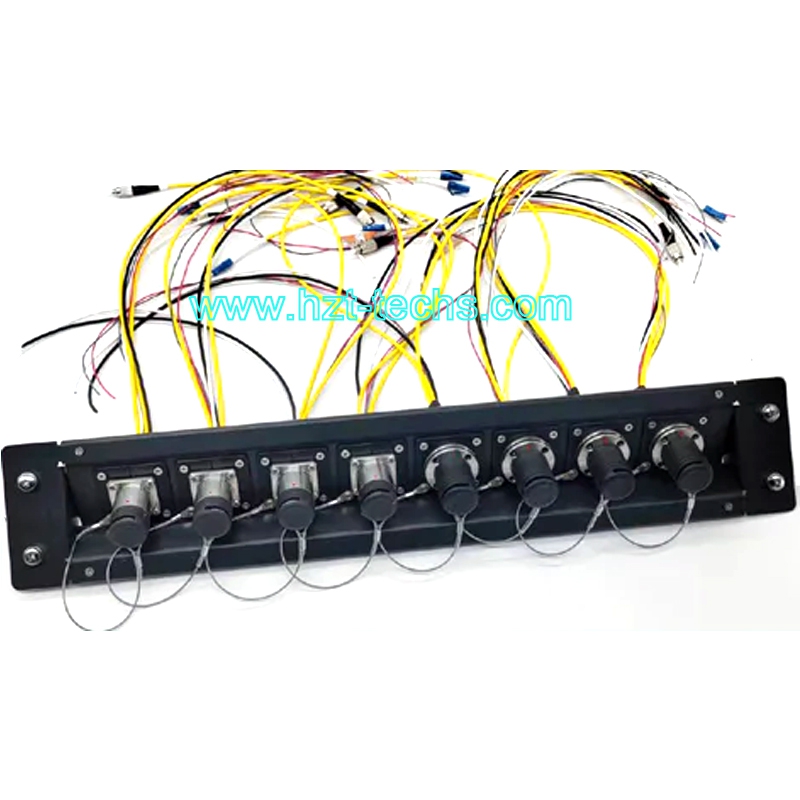

A hybrid fiber optic patch panel designed to interface between rugged SMPTE (FXW/EDW) connectors from the field and standard LC duplex ports in fixed installations. Ideal for broadcast, OB vans, and live event production.
|
|
Mechanical Specifications
|
|
|
Rack Standard
|
EIA 19-inch, standard rack width (483mm)
|
|
Panel Height
|
2 RU (2U Rack Unit, 483 mm / 1.75 inches, L×H: 483mm × 88mm)
|
|
Material
|
Steel or Aluminum chassis; metal or composite adapter panel.
|
|
Finish
|
Black, anodized or powder-coated.
|
|
Capacity:
|

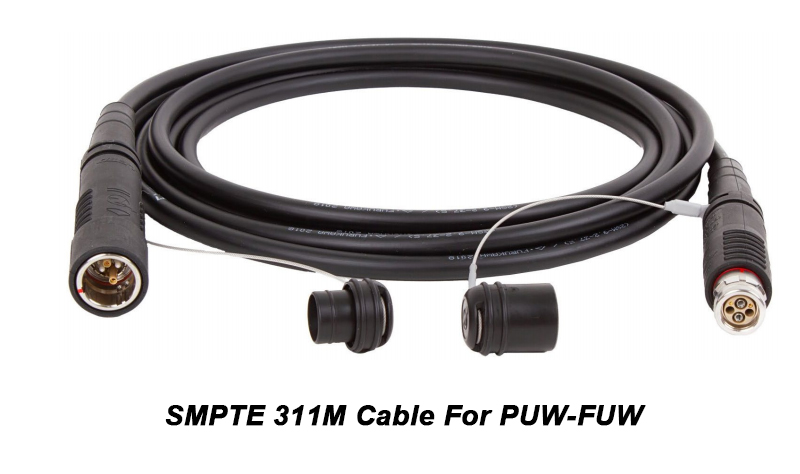

Max: 8 × SMPTE 311M PUW-FUW Cable

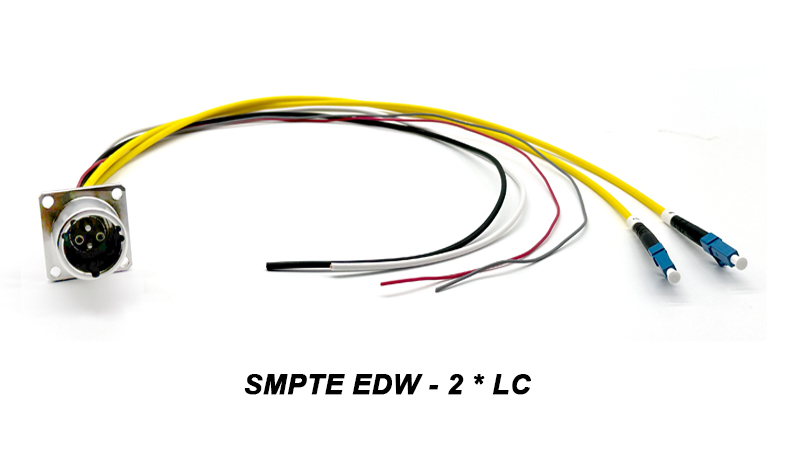

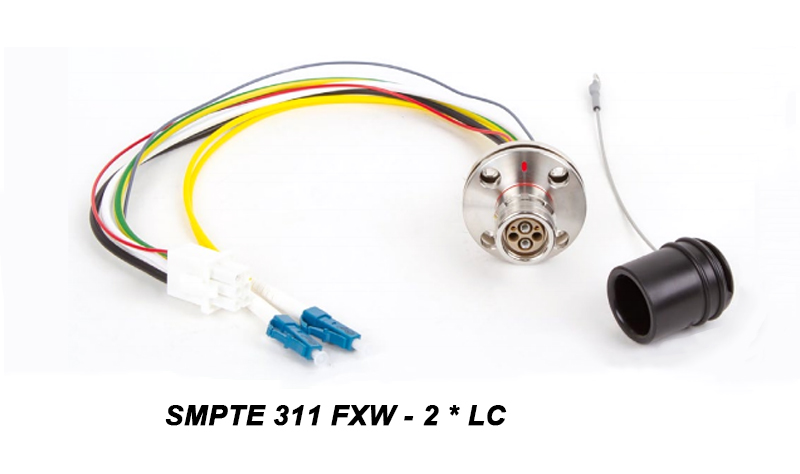

Or 8 × SMPTE 311M FXW/EDW Pigtail
|
|
Fiber Optic Specifications
|
|
|
Fiber Type
|
Single-Mode (OS2)
|
|
Connector Front
|
Dual LC or LC Duplex (per IEC 61754-20).
|
|
Connector Rear
|
SMPTE 304M-compliant, Type FXW
|
|
Polish Type
|
UPC (Standard) or APC (Angled, typically for Single-Mode).
|
|
Insertion Loss
|
≤ 0.3 dB typical; ≤ 0.5 dB maximum.
|
|
Return Loss
|
≥ 50 dB (UPC); ≥ 60 dB (APC).
|
|
Pigtail Cable Type
|
2.0mm or 3.0mm diameter LSZH (Low Smoke Zero Halogen) or OFNR-rated jacket.
|
|
Pigtail Length (Rear)
|
Standard lengths from 0.5 meter to 3.0 meters (custom lengths available).
|
|
Power Wires and Signal wires
|
|
|
Power Wire specification |
2x1.0mm2
|
|
Signal wire specification |
2 x signal wires
|
|
Environmental & Reliability
|
|
|
Operating Temperature
|
-10°C to +70°C (+14°F to +158°F).
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to +185°F).
|
|
Durability
|
SMPTE Connector: >500 mating cycles.
|
|
Flammability Rating
|
UL 94V-0 (for panel materials).
|
|
Compliance & Standards
|
|
|
Standards
|
Compliant with SMPTE 304M, IEC 61754-20 (LC), and Telcordia GR-326-CORE.
|
|
RoHS
|
Compliant with RoHS directives.
|
 |
